Heat Pump Solution for Large Buildings: Belaria pro (40, 50) – Use Cases for Planners
Large buildings demand high-performance, quiet, and easily integrated heat pumps. The Belaria pro (40, 50) delivers efficient system design and reliable implementation for complex projects.
- Blog
- Expert - Engineer

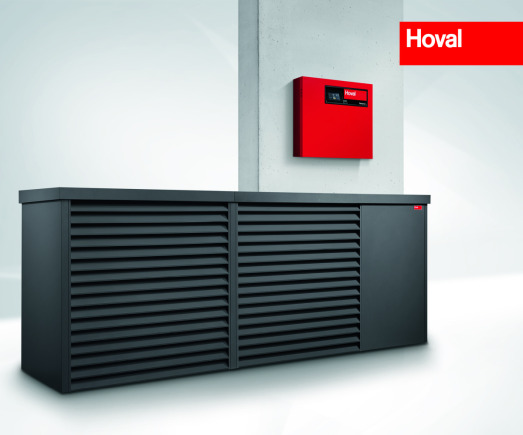

Belaria pro – a technological marvel
▪ Quiet
▪ Highly efficient
▪ High flow temperature
▪ High output
▪ Natural refrigerant
Quiet
Belaria pro heat pumps achieve top scores when it comes to sound. They won’t disturb other residents, they meet approval criteria and they don’t require any costly sound insulation.
Flexible from 20–200 kW
The Belaria pro with its four output ratings (20, 25, 40 and 50 kW) is easy to cascade, enabling finely graduated system outputs from 20 to 200 kW.
Complete solution
A heat pump is rarely supplied on its own. That’s why we offer perfectly matched components to make up a complete system. And the Hoval team provides comprehensive support from engineering to servicing.
Flexible output from 20 to 200 kW
Belaria pro heat pumps deliver exactly the output that is needed, making optimum use of energy thanks to their tailored dimensions and modulating inverter technology.With four cascadable output ratings (20, 25, 40 and 50 kW), we offer finely graduated outputs from 20 to 200 kW. Tuning makes heating and cooling efficient and also saves operating costs.
Figure 1: High efficiency due to finely graduated system outputs from 20–200 kW
Practical Application Scenarios – Belaria pro (40, 50) System Schematics

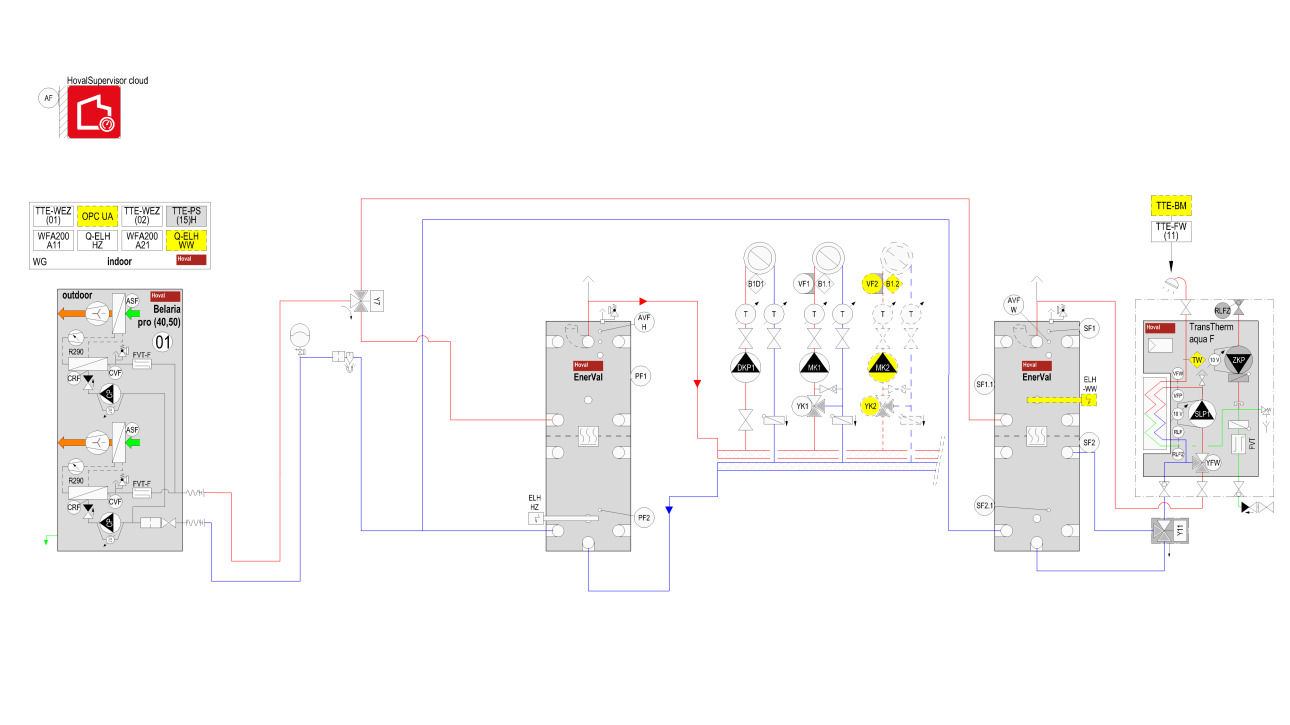

a) Multi-family buildings: Belaria pro (40, 50) for heating and DHW with high supply temperatures:
2-BP4050-3010 (1)-1-H
b) Office buildings, multi-family buildings, and school buildings: year-round optimal indoor climate with Belaria pro (40, 50):
2-BP4050-3011-1-H

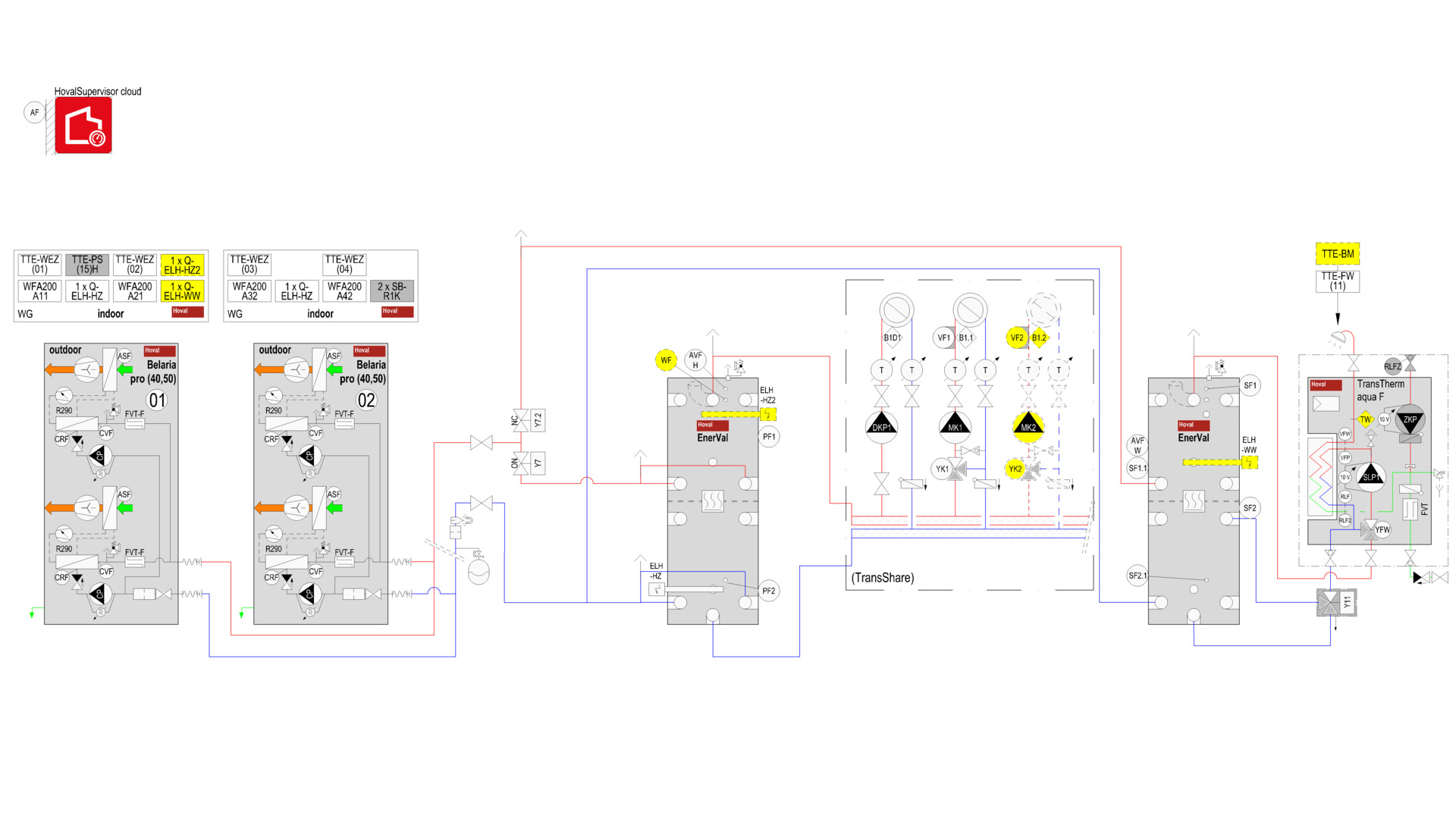

c) School and large multi-family buildings – cascaded systems up to 200 kW:
2-BP4050-K3010-1-H

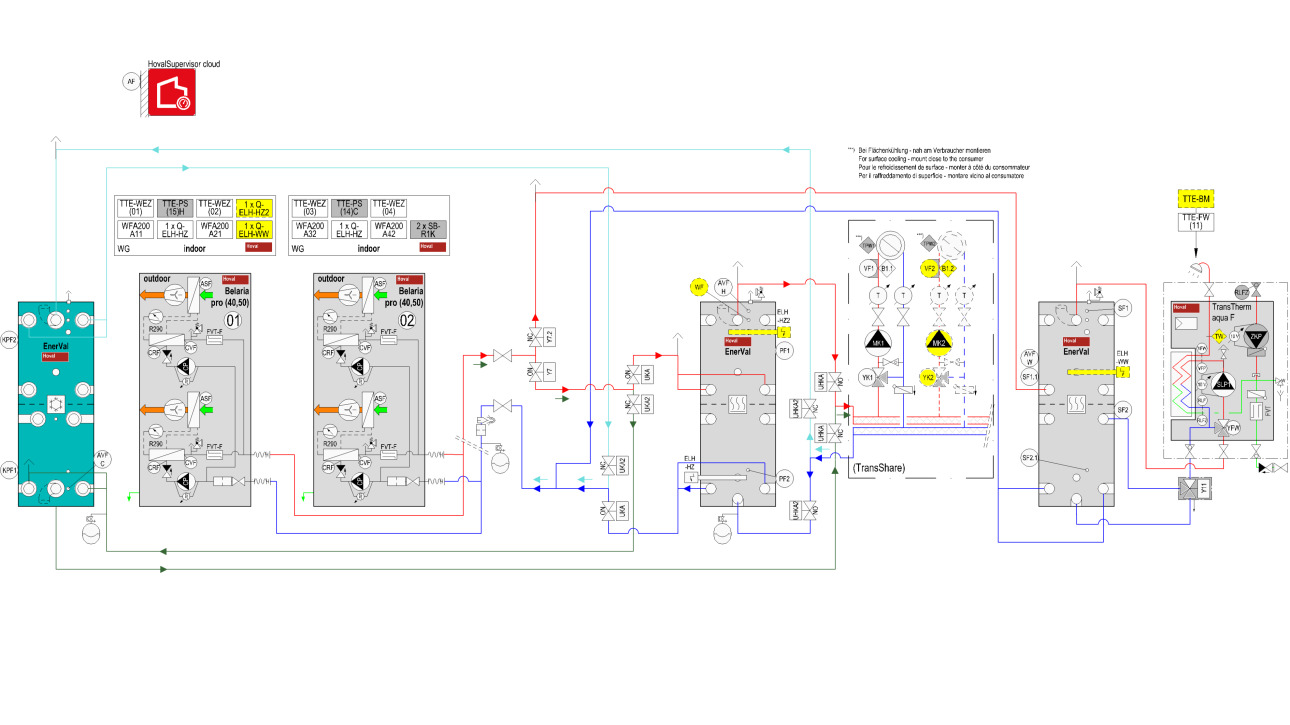

d) Large office buildings — integrated heating, cooling, and DHW in a single system:
2-BP4050-K3011-1-H

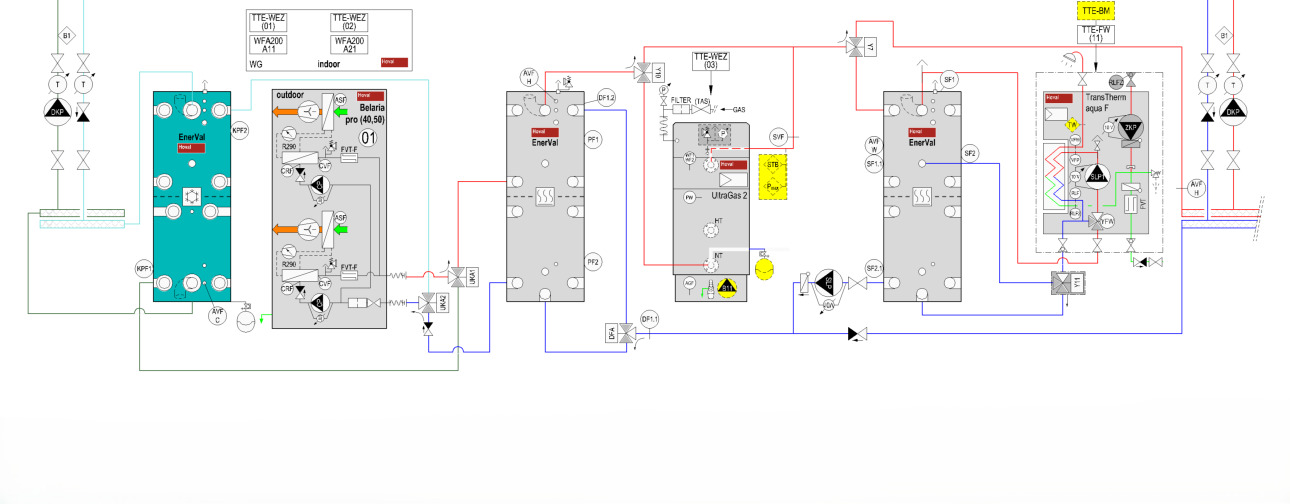

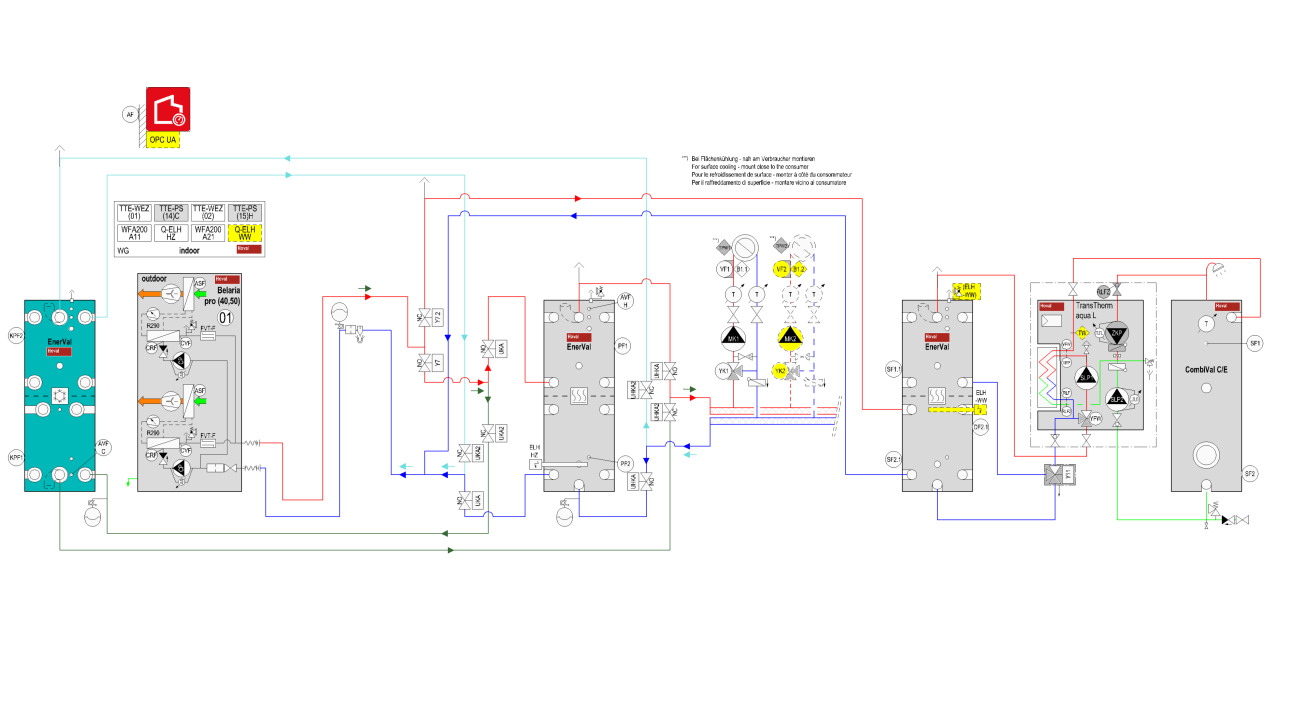

e) Cascaded systems for large buildings with a secondary energy source for backup or peak load coverage:
2-BP4050-H3011 (1)-1-H
Optimally coordinated components for a fully integrated system
There’s no need to waste time searching for components. We offer all the extras you need, with heat pump-optimised buffer storage and cold storage tanks, domestic water heating, heat and cold distribution systems, and a management system featuring remote maintenance available to complete your building’s energy system. Whether you need everything at once or piece by piece, Hoval provides support from planning and implementation to servicing and maintenance.
Belaria pro is the complete solution for futureproof heating and cooling in residential and commercial use.
Related Webinar
Direct link to the webinar with more information:
Hoval air/water heat pumps for large buildings – efficient, economical, and quiet
Agenda:
- Technical data, sound levels, and installation concepts for large systems
- Safety aspects with propane (R290) – the Hoval safety design
- System solutions: monovalent, bivalent, and cascades up to 200 kW with TopTronic E
- A practical example from a realized reference installation
Your Hoval contact will be happy to provide you with further information and individual consulting!
